Combined drawing machine

E-mail: richard@t11.com.cn    amy@t11.com.cn

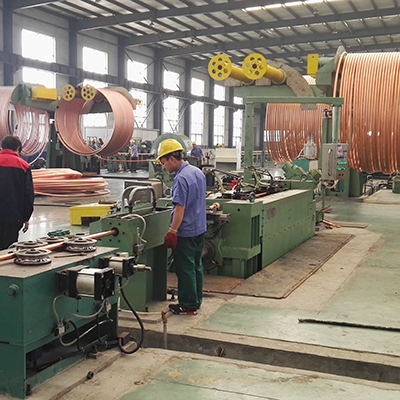

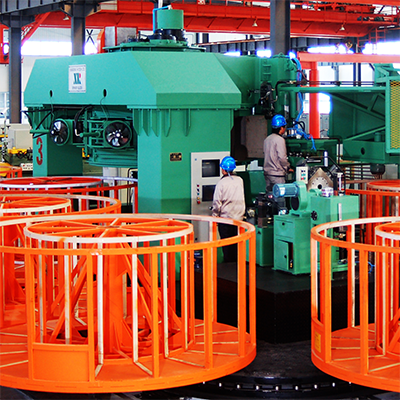

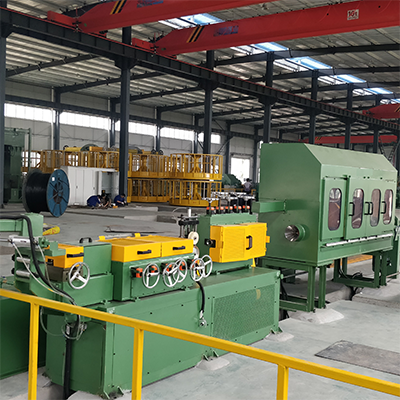

Product Description

1.General Description

DY-LH combined drawing machine consists of pay off, two sets cam type drawing machine, dancer, pre-bender and receiver. The input size of drawing machine is φ47~50X2.3~2.5mm, and output size is φ30x1.5mm.

2.Main technical data

  1. 2.1 Drawing force: 1st drawing: 100KN, 2nd drawing: 80KN,
  2. 2.2 Production capacity: 3t/h
  3. 2.3 Input tube specification: Φ47～Φ50×2.2～2.5mm
  4. 2.4 Drawing machine driving method: DC motor driving (complete digital DC converter control system).
  5. 2.5 Installation power: 500kW.
  6. 2.6 Water cycling: 30m3/h
  7. 2.7 Air consumption: 12m3/h
  8. 2.8 Hydraulic system: Tube guiding cylinder of drawing dolly, drawing clamper control cylinder, pre-bender cylinder, hydraulic pointer cylinders and other related hydraulic system.
