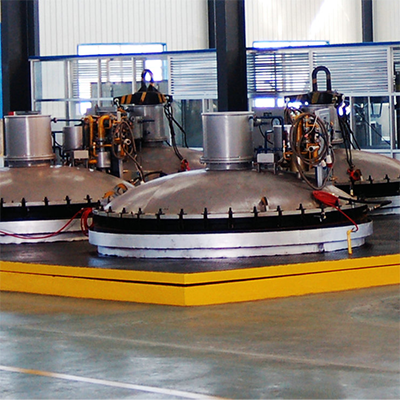

Well type annealing furnace

E-mail: richard@t11.com.cn    amy@t11.com.cn

Product Description

Main technical Parameter

Applicable Product (Copper tube) rangeTube OD:φ4-φ16mm,Tube wall thickness: 0.35~1.2mm
LWC ID :φ610mm
LWC OD: φ800～φ1000mm
Weight of each coil:≤300Kg
Production capacity:20T/D
Annealing Capacity:1000Kg/per furnace
Annealing temperature:300-600℃
Cooling temperature:≤55℃
Uality of surface: Bright with the original color of metal
Furnace main specification:
OD of the furnace: φ4220mm
Height of the furnace: 3000mm
The valid dimension of heating furnace:φ3150x2500mm
