- Model: SL24-Qw2-S-B-8/25
- Annual melting capacity: 15,000 tons

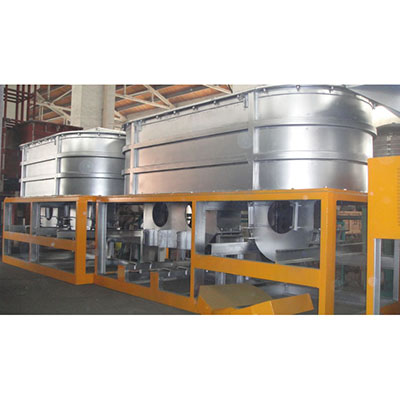

- Furnace: 3-chamber furnace (1 melting chamber, 1 transition chamber and 1 holding chamber)
- Quantity of strand: 24
- Rod diameter: φ8~25 mm
- Rod leading speed: 0~1500 mm/min.
- Leading pitch: 2.5~5 mm adjustable
- Leading frequency: 0~400 times/min
- Leading method: by double servo motors
- Annual working time: 7920 h
- Finished coil size: φ1700 *900*800(mm)
- Working voltage: 380V 50Hz
- The installed power: 1070 kVA
- Melting capacity: 2000 kg/h
- Maximum operating power: ≤760 kW
- Expenditure of copper rod (per ton ):
2) Charcoal: ≤12 kg
