Main technical parameters:

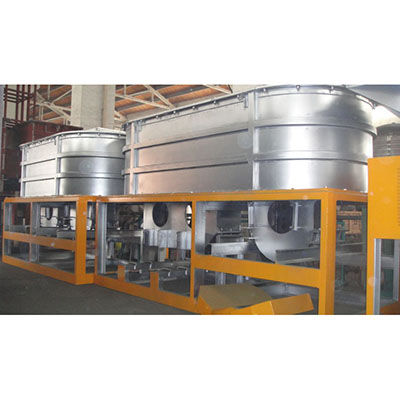

300KG/500KG double connected upcasting furnace
Rated total power of melting furnace 120KW
Rated power of holding furnace 80KW
Number of continuous casting heads 6
Copper rod doameter: Ф8-20mm
Maximum continuous casting capacity 3000T/Y
Upper leading speed 450-2400mm/min
Working hours per year 7200h
Level tracking accuracy ±2mm
Winding specifications φ700mm×φ1600mm×800mm
Power consumption rate of molten copper ＜315kwh/ton
Power factor 0.9-1
Cooling water pressure 0.25-0.3mpa
