Main technical date
Model: SL12-QL-S-B-8
Annual output: 6,000 tons

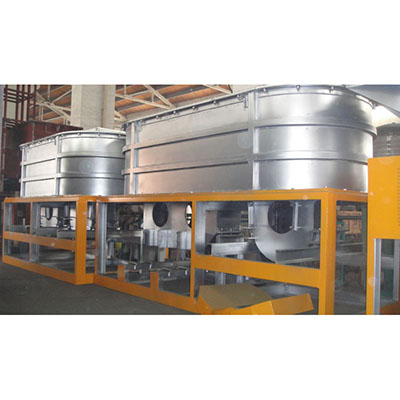

Furnace: 3 chambers(2 melting; 1 holding chamber)
Quantity of strand: 12
Rod diameter: ф8mm
Rod leading speed: 0～2800mm/min;
Pitch: 2.5~6mm adjustable
Annual working time: 7920h
Finished coil size: φ900 *1550*1000(mm)
Voltage: 380V 50Hertz
The installed power: 485KVA
Melting capacity: 790kg/h
Maximum operating power: 240~260 KW
Expenditure of copper rod (per ton ):
1) Electricity: ≤340kwh /T
2) Charcoal: ≤15kg
