Product Details
| Main Technical Parameters | 650 |
| Extrusion wheel nominal diameter | 650mm |
| Main motor power | 650kW |
| Installed power | 700kw |
| Extrusion machine speed | 3-8m/rpm |
| Types of materials | On oxygen free copper rod |
| rod diameter | Diameter:30mm |
| Product scope of section | 300-5500mm2 |
| Product maximum width | Copper platoon350mm Copper rod 140mm |
| Average productivity | 2500kg/h |
| Material overflow rate | <5% |

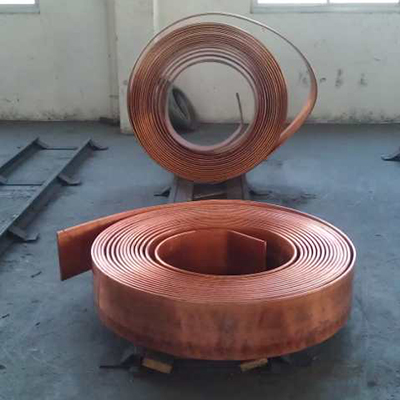

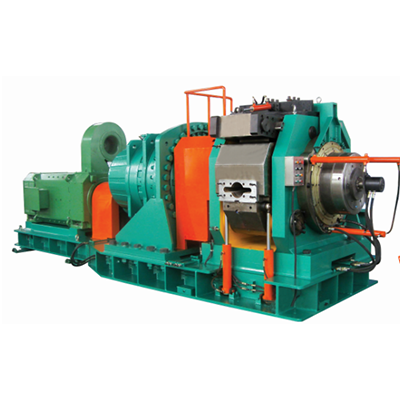

Copper continuous extruding production line function: It can be used to produce copper flat wire, copper busbar, commutator, contact wires for electric locomotive and other solid copper material. The products are extensively used to manufacture transformer, big and middle sized motor, high-low voltage switch electric appliance, DC electric commutator and so on.
