Aluminum cladding steel production line
Production line introduction

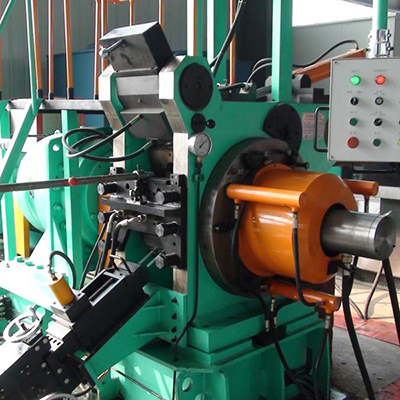

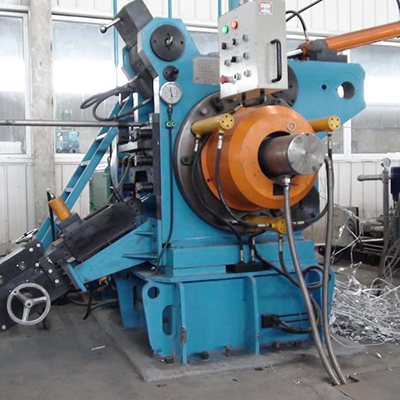

The ACS Extrusion Machine uses the tangential continuous cladding technique, which will continuously clad the aluminum on the treated steel wire surface, then use bi-metal synchro deforming technics to draw the wire to the size expected. The ACS wire manufactured under this technique will meet the IEC Standard and ASTM Standard.
Main technical data
ACS Extrusion Machine model LB350-2/200, technical data as follows:
Extrusion wheel size: 340 mm
Main machine max. rotary speed: 16 rpm
Power supply: 380V 50HZ
Main motor power: 200 kW/1500rpm
Steel wire diameter: 3~6.5 mm
Max. cladding speed: 180 m/min
Aluminum rod diameter: 9.5mm
Take-up load: ≤6t
Center height: 1000mm
Noise: ≤85db
Ambient temperature: -5℃~40℃
The machine can also be used to manufacture the aluminum sheath for CATV or OPGW, with corresponding auxiliary equipments.
The main parts and the spare parts, such as extrusion wheel, chamber, main machine bearings are universal with BWE ACS machine. It will bring some convenience for the BWE ACS machine users.
