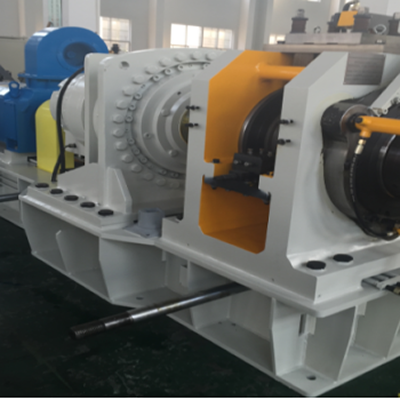

Aluminum continuous extrusion machine

E-mail: richard@t11.com.cn    amy@t11.com.cn

Product Description

Main Technical Parameters LLJ300 LLJ350 LLJ400
Extrusion wheel nominal diameter 300mm 350mm 400mm
Main motor power 90kW 180kW 250kW
Installed power 22.5 m/rpm 16m/rpm 4-12.5m/rpm
Extrusion machine speed Pure aluminum, aluminum alloy Pure aluminum, aluminum alloy Pure aluminum, aluminum alloy
Types of materials F9.5/12mm F15mm Ø20mm
rod diameter 5-150mm2 10-600mm2 200-1800 mm2
Product scope of section Flat wire, flat tube maximum 30 mm wide, round bar, pipe diameter 20 mm Flat wire, flat tube maximum 60 mm wide, round bar, pipe diameter 30 mm Flat wire, flat tube maximum 170 mm wide, round bar, pipe diameter 80 mm
Product maximum width
Average productivity 230kg/h 450kg/h 500kg/h
Material overflow rate 0 0 1-3%
?. Application: round tubes of air conditioner and refrigerator, multi-hole tubes for car air conditioner and intercooler, flat aluminum wire, producing pure aluminum L0-L6 and aluminum alloy such as LD31,LF21 and so on.
