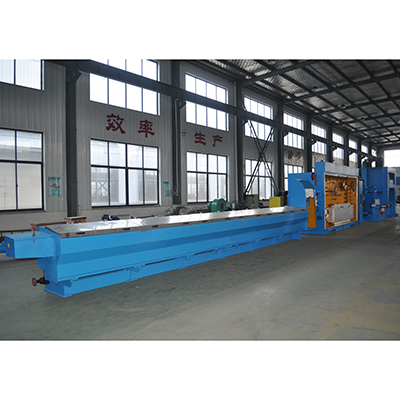

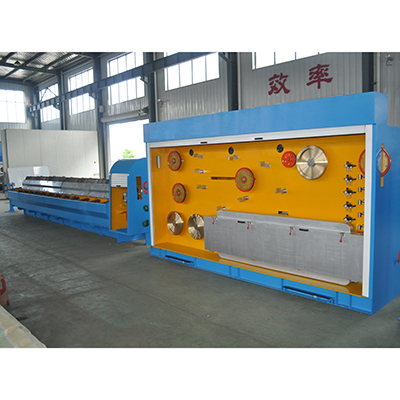

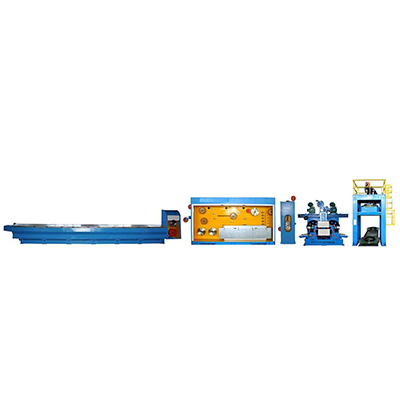

450/13 is a slip type aluminum and aluminum alloy wire drawing machine, which can make Φ9.5mm aluminum or aluminum alloy rod into Φ1.7mm-Φ4mm aluminum or aluminum alloy wire.
This machine uses a programmable controller to drive each motor start, working and stop as well as various electronic components, including Siemens DC Adjustment device, cable align controlling and lubrication and cooling system.
This machine features in reliable performance, stable running, high efficiency, convenient operation and maintenance.
II. Main Technical Specs
- Wire Inlet Φ9.5 mm
- Wire Outlet Φ1.7-Φ4 mm
- Max. drawing speed 23 m/s
- Drawing Capstan Dia. Φ450 mm
- Max. Drawing Dies 13 Dies
- Dimension of Drawing dies Φ38*25

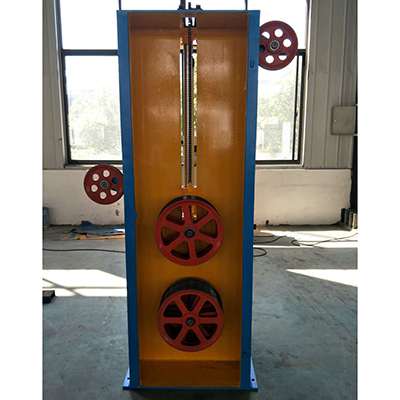

- Capacity of Dancer 8 m
- Bobbin size PND500-PND630
- Main Motor 315 KW
- Fixed Capstan Motor 75 KW

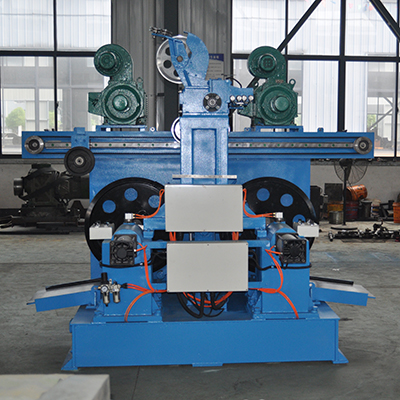

- Spooler Motor 30 KW*2
- Machine Size (Length*width*height) （23.5m*5.3m*4.5mm)
