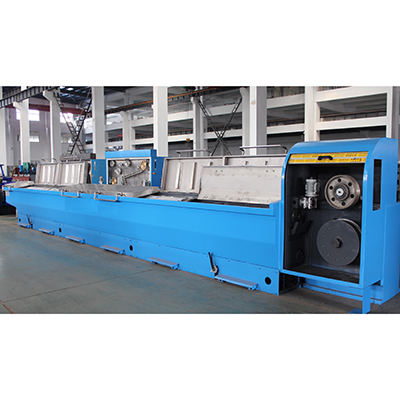

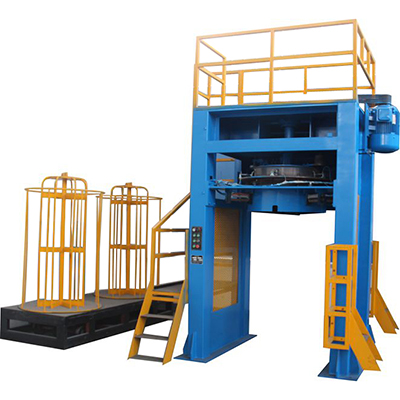

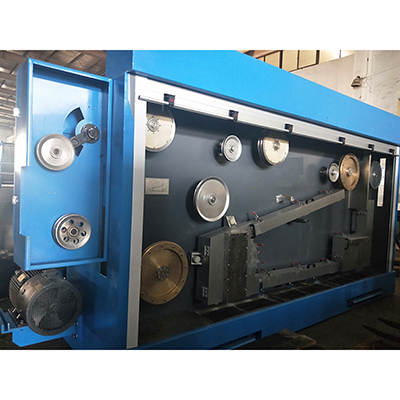

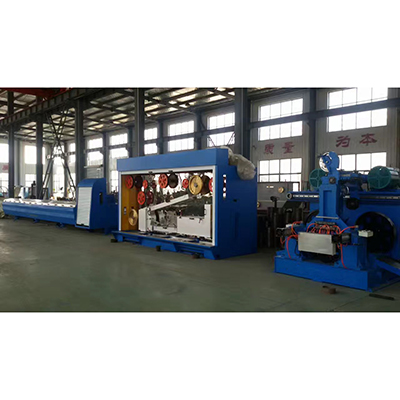

1. GENERAL DESCRIPTION
This machine is used to draw φ1.2－φ4.0mm copper wires. The drawing blocks are mounted in one row.
The constant-speed wheel and the other 12 drawing block are driven by two motors respectively. Such
design makes easy operation and change dies quickly.
2、 TECHNICAL PARAMETER
2.1 Inlet wire Φ8.0mm
2.2 Outlet wire φ1.2－φ4.0mm
2.3 Max speed of drawing 23m/s (φ 1.38mm)
2.4 Drawing block size φ450mm
2.5 Max number of passes 13
2.6 Die dimension Φ40×25
2.7 Capacity of the accumulator 8m
2.8 Spooling bobbin size PND500~PND630
2.9 Main motor power 250kW (DC)
2.10 Power of motor for constant speed wheel 75kW (DC)
2.11 Power of motor for take up 15kW (DC )
2.12 Machine dimension 26000×5310×4500㎜
2.13 Anneal unit power 70V, 5000A(DC)
