Detailed Description

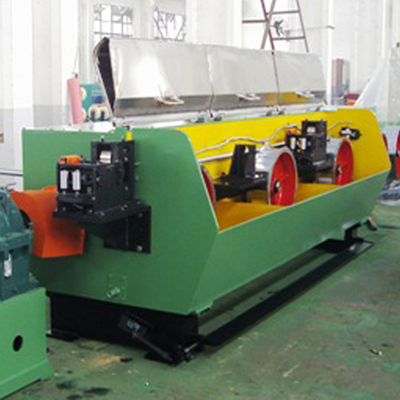

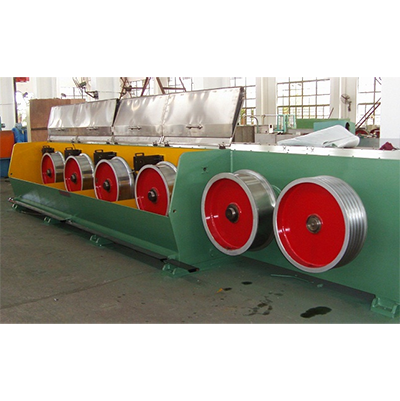

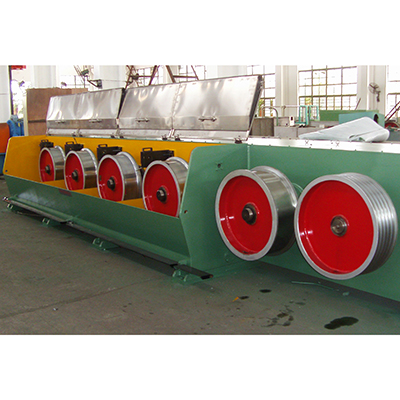

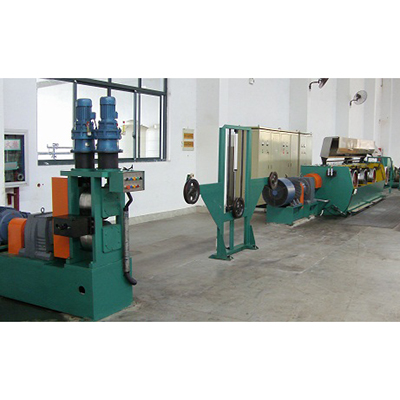

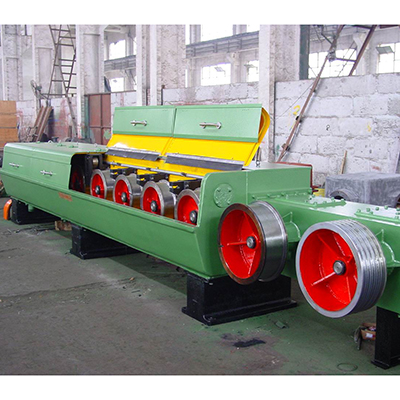

Type: LHD500-5CActive flatting drive power(kw): 30
Wire out speed(m/min): 100
Wire drawing host machine drive power(kw): 55
Max diameter of wire in die(mm): 8
Diameter of wire drawing drum wheel(mm): 500
Diameter of wire out drum wheel(mm): 500
Section area of wire out(mm²): 5-30
Wire out speed(m/min): 160
Wire rewinding reel specification: PN710-PN800

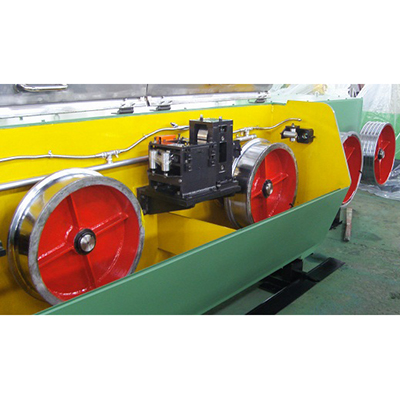

The master drive adopts converter speed control and hard tooth face reducer. No impact occurs in startup and speed adjustable range is wide. Flatting machine and wire drawing machine adopt advanced interlock speed control device so the wire drawing machine becomes much easier on operation. Outlet drum wheel adopts wheel separating device, and effectively improves the surface quality of finished wires. Low power consumption, high efficiency.
